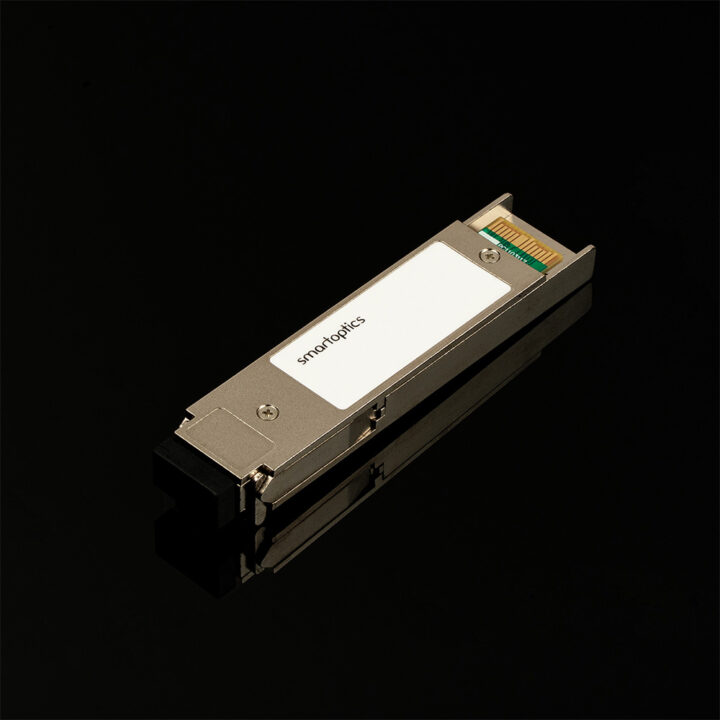

XFP Optical Transceivers

XFP tranceivers

The SO-XFP family are transceiver modules in industry standard Multi-Source Agreement (MSA) form factor designed for optical communication applications compliant to 8 and 16G Ethernet and FC. They are designed to meet the harshest temperature, humidity and EMI operating conditions. They are suited to data center applications from bottom of rack to top of rack, rack to rack and inter data center. They can be connected directly in the switch for embedded connectivity or through a Smartoptics T-Series transponder to convert short range 850nm to multi-channel DWDM signals. DWDM models can be used together with Smartoptics M-Series intelligent distance extending multiplexer platform to extend the reach to 400km+.

  • 8 / 10G connectivity
  • Grey / CWDM / DWDM
  • Digital diagnostics
Optical transceivers
10G
Standard
Application Item No Description
Standard SO-XFP-SR XFP, 10GBase-SR, 10.3125 Gbps, 850nm, MM, DDM, 3.8dB, 300m@OM3
download
Standard SO-XFP-LRM XFP, 10GBase-LRM, 1310nm, MM, DDM, 3.4dB, 300m
download
Standard SO-XFP-LR XFP, 10GBase-LR, Multirate 9.95-11.1 Gbps, 1310nm, SM, DDM, 8.5dB, 10km
download
Standard SO-XFP-LR40 XFP, 10GBase-LR, Multirate 9.95-11.1 Gbps, 1310nm, SM, DDM, 16dB, 40km
download
Standard SO-XFP-LR20 XFP, 10GBase-LR, Multirate 9.95-11.1 Gbps, 1310nm, SM, DDM, 12dB, 20km download
Standard SO-XFP-ER XFP, 10GBase-ER, Multirate 9.95-11.1 Gbps, 1550nm, SM, DDM, 16dB, 40km
download
Standard SO-XFP-ZR XFP, 10GBase-ZR, Multirate 9.95-11.1 Gbps, 1550nm, SM, DDM, 24dB, 80km
download
BIDI
Application Item No Description
BIDI SO-XFP-10GE-BX10D-2733 XFP, BIDI, 10GBase, Multirate 9.95-11.1 Gbps, TX/RX=1270/1330nm, DDM, 9dB, 10km, LC
download
BIDI SO-XFP-10GE-BX10D-3327 XFP, BIDI, 10GBase, Multirate 9.95-11.1 Gbps, TX/RX=1330/1270nm, DDM, 9dB, 10km, LC
download
BIDI SO-XFP-10GE-BX20D-2733 XFP, BIDI, 10GBase, Multirate 9.95-11.1 Gbps, TX/RX=1270/1330nm, DDM, 12dB, 20km, LC
download
BIDI SO-XFP-10GE-BX20D-3327 XFP, BIDI, 10GBase, Multirate 9.95-11.1 Gbps, TX/RX=1330/1270nm, DDM, 12dB, 20km, LC
download
BIDI SO-XFP-10GE-BX40D-2733 XFP, BIDI, 10GBase, Multirate 9.95-11.1 Gbps, TX/RX=1270/1330nm, DDM, 16dB, 40km, LC
download
BIDI SO-XFP-10GE-BX40D-3327 XFP, BIDI, 10GBase, Multirate 9.95-11.1 Gbps, TX/RX=1330/1270nm, DDM, 16dB, 40km, LC
download
BIDI SO-XFP-10GE-BX60D-2733 XFP, BIDI, 10GBase, Multirate 9.95-11.1 Gbps, TX/RX=1270/1330nm, DDM, 21dB, 60km, LC
download
BIDI SO-XFP-10GE-BX60D-3327 XFP, BIDI, 10GBase, Multirate 9.95-11.1 Gbps, TX/RX=1330/1270nm, DDM, 21dB, 60km, LC
download
CWDM
Application Item No Description
CWDM SO-XFP-LR-Cyy XFP, 10GBase-LR, Multirate 9.95-11.1 Gbps, CWDM 1270nm-1330nm, SM, DDM, 10dB, 10km
CWDM SO-XFP-LR-Czz XFP, 10GBase-LR, Multirate 9.95-11.1 Gbps, CWDM 1350nm-1450nm, SM, DDM, 10dB, 10km
CWDM SO-XFP-ER-Cxx XFP, 10GBase-ER, Multirate 9.95-11.1 Gbps, CWDM 1470nm-1610nm, SM, DDM, 14dB, 40km
download
CWDM SO-XFP-ZR-Cxx XFP, 10GBase-ZR, Multirate 9.95-11.1 Gbps, CWDM 1470nm-1610nm, SM, DDM, 23dB, 70km
download
CWDM SO-XFP-LR-Cxx XFP, 10GBase-LR, Multirate 9.95-11.1 Gbps, CWDM 1470nm-1610nm, SM, DDM, 10dB, 10km
download
DWDM
Application Item No Description
DWDM SO-XFP-ZR-50G-Dxxxx XFP, 10GBase-ZR, Multirate 9.95-11.1 Gbps, DWDM, 50GHz, SM, DDM, 24dB, 80km download
DWDM SO-XFP-ER-50G-Dxxxx XFP, 10GBase-ER, Multirate 9.95-11.1 Gbps, DWDM, 50GHz, SM, DDM, 14dB, 40km download
DWDM SO-XFP-ER-Dxxxx XFP, 10GBase-ER, Multirate 9.95-11.1 Gbps, DWDM, SM, DDM, 14dB, 40km
download
DWDM SO-XFP-ZR-Dxxxx XFP, 10GBase-ZR, Multirate 9.95-11.1 Gbps, DWDM, SM, DDM, 24dB, 80km
download
DWDM SO-TXFP-ER-DWDM XFP, 10GBase-ER, Multirate 9.95-11.1 Gbps, C-Band-Tunable, DWDM, 50GHz, 15dB, 40km
download
DWDM SO-TXFP-ZR-DWDM XFP, 10GBase-ZR, Multirate 9.95-11.1 Gbps, C-Band-Tunable, DWDM, 50GHz, 22dB, 80km
download
8G
Standard
Application Item No Description
Standard SO-XFP-8G-SD XFP, 8/4/2 Gbps FC/FICON, 850nm, MM, DDM, 4.3dB, 150m
download
Standard SO-XFP-8G-L10D XFP, 8/4/2 Gbps FC/FICON, 1310nm, SM, DDM, 8dB, 10km
download
CWDM
Application Item No Description
CWDM SO-XFP-8G-ER-Cxx XFP, 8/4/2 Gbps, CWDM, 1470nm-1610nm, SM, DDM, 15dB, 40km
download
CWDM SO-XFP-8G-ZR-Cxx XFP, 8/4/2 Gbps, CWDM, 1470nm-1610nm, SM, DDM, 24dB, 70km
download
DWDM
Application Item No Description
DWDM SO-XFP-8G-ER-Dxxxx XFP, 8.5 Gbps, DWDM,SM, DDM, 14dB, 40km
download
DWDM SO-XFP-8G-ZR-Dxxxx XFP, 8.5 Gbps, DWDM,SM, DDM, 24dB, 80km
download
