Smartoptics Brocade alliance

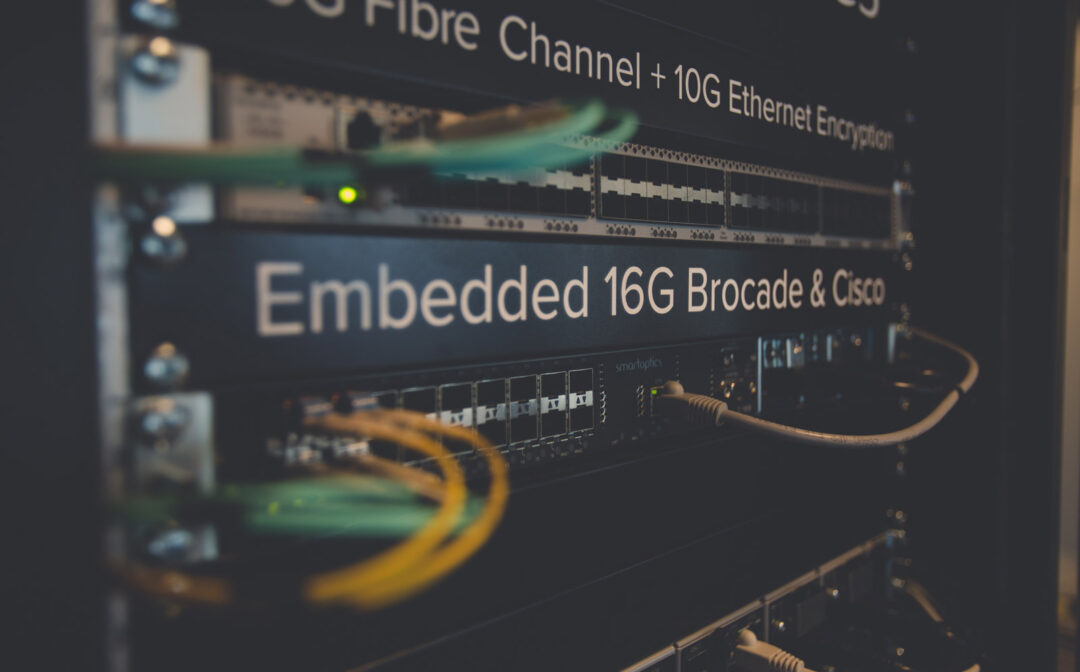

We are the only vendor whose complete end-to-end solutions are layer 1 tested by Brocade. Not just transceivers or multiplexers, but systems that allow intelligent long distance connectivity based on embedded CWDM/DWDM principles, without the need for expensive and complex stand-alone DWDM platforms. With Smartoptics embedded solutions Brocade users can connect as many SAN & WAN Internet switch links (ISLs) as required, independent of speed over a dark fiber network

M-Series, the world’s first intelligent distance extending DWDM multiplexer platform, monitors each wavelength and detects if there’s a service interruption. It can simultaneously transport SAN and IP signals up to 500 kilometers between sites. M-Series can also be used as a passive multiplexer with management.

Smartoptics and their M-Series is the technology partner of choice for Brocade. To us the choice was obvious.
– Jan Svarrer Sølvsten, Senior SAN Architect, NNIT.

By using Smartoptics solutions with Brocade, you get the simplicity of an Extended Long Wavelength (ELWL) approach, with the density of a complex telecom grade DWDM system. A user-friendly platform in the smallest footprint possible for all today’s data protocols. And the ultimate green data center networking solutions.

Together Smartoptics and Brocade provide best in class one-stop solutions for data and transport, making sure you get the most out of your systems budget. That quality is ensured from network design to overall maintenance.

Solution Brief:   100G distance extension solutions
Solution Brief:   16/8G FC SAN extension solutions
Partner Brief:    Enabling simple Fibre Channel; data center connectivity with embedded xWDM.

Share:

New Call-to-action
New Call-to-action

By using Smartoptics solutions with Brocade, you get  the simplicity of an ELWL approach, with the density of a complex telecom grade DWDM system. A user-friendly platform in the smallest footprint possible for all today’s data protocols. And the ultimate green data center networking solutions.

16G
Application Item No Description
Single channel 16G-ER-BR2 SFP+, 16/8/4 Gbps FC/FICON, SM, DDM, 13dB, 40km download
CWDM 1530nm 16G-ER-Dxxx-BR2 SFP+, 16/8/4 Gbps FC/FICON, for CWDM 1530nm, SM, DDM, 14dB, 40km
(Dxxx = D520 to D610)
download
CWDM 1550nm 16G-ER-Dxxx-BR2 SFP+, 16/8/4 Gbps FC/FICON, for CWDM 1550nm, SM, DDM, 14dB, 40km
(Dxxx = D260 to D420)
download
DWDM 16G-ER-Dxxx-BR2 SFP+, 16/8/4 Gbps FC/FICON, DWDM, SM, DDM, 14dB, 40km download
Support Matrix FOS 8.0 Matrix FOS 8x Compatibility Matrix, Feb 2017
Please note: transceivers approved in 32G switches
download
8G
Application Item No Description
Single channel 40km 8G-ER-Dxxx-BR1 SFP+, 8/4/2/1 Gbps FC/FICON, DWDM, SM, DDM, 14dB, 40km
(Dxxx = D210 to D600)
download
Single channel 70km 8G-ZR-C55-BR1 SFP+, 8/4/2/1 Gbps FC/FICON, 1550nm, SM, DDM, 23dB, 70km
download
CWDM 40km 8G-ER-Dxxx-BR1 SFP+, 8/4/2/1 Gbps FC/FICON, SM, DDM, 14dB, 40km
For C53, Dxxx = D520 to D610; For C55, Dxxx = D260 to D420
download
CWDM 70km 8G-ZR-Cxx-BR1 SFP+, 8/4/2/1 Gbps FC/FICON, CWDM 1470nm-1610nm, SM, DDM, 23dB, 70km download
DWDM 40km 8G-ER-Dxxx-BR1 SFP+, 8/4/2/1 Gbps FC/FICON, DWDM, SM, DDM, 14dB, 40km download
DWDM 80km 8G-ZR-Dxxx-BR1 SFP+, 8/4/2/1 Gbps FC/FICON, DWDM, SM, DDM, 14dB, 80km download
4G
Application Item No Description
50km SO-SFP-4GFC-L50D SFP, 4/2/1 Gbps FC/FICON, 1550nm, SM, DDM, 18dB, 50km
download
100km SO-SFP-4GFC-L100D SFP, 4/2/1 Gbps FC/FICON, 1550nm, SM, DDM, 28dB, 100km
download
50km SO-SFP-4GFC-50D-Cxx SFP, 4/2/1 Gbps FC/FICON, CWDM 1270nm-1610nm, SM, DDM, 18dB, 50km
download
80km SO-SFP-4GFC-80D-Cxx SFP, 4/2/1 Gbps FC/FICON, CWDM 1270nm-1610nm, SM, DDM, 28dB, 80km
download
